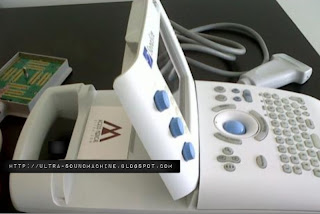

Sonosite Heart Elite Ultrasound Machine

Sonosite Heart Elite Ultrasound Machine

Sonosite released SonoHeart Elite ultrasound machine with all-digital quality is capable to perform cardiovascular examinations for adult, pediatric and neonatal patients. The first all-digital, hand-carried ultrasound system with continuous wave (CW) Doppler and Extended Resolution Harmonic (ERH) Imaging. The new capabilities allow for quantification of blood flow in the heart with CW Doppler and enhanced two-dimensional image quality with ERH. Only has 5.7 pounds weighs, makes easy and can literally carry anywhere  for doctors and technicians, and it can run on either battery power or plugger in.

The SonoHeart Elite system includes the following new features:

• Continuous wave (CW) Doppler provides sensitive and accurate assessment of blood flow with a simple, intuitive user interface. The sensitivity and clear signal quality compares favorably to CW Doppler found on much larger, more expensive ultrasound systems.
• Extended Resolution Harmonics (ERH) provides clarity without sacrificing penetration or fine anatomic detail.

In addition to new features, the SonoHeart ELITE platform also provides enhancements to the 2D and color imaging. Higher frame rates, better signal to noise ratio, and improved filtering enable clinicians to achieve even better resolution of anatomy and pathology.

Detailed Product Description

The Sonosite SonoHeart Ultrasound Machine has the following features:

• All-digital image quality
• Weighs 5.7lbs (2.6 kg)
• Battery or AC powered
• Continuous wave (CW) Doppler
• Pulsed wave (PW) Doppler
• Extended Resolution Harmonics (ERH) Imaging
• M-mode
• ECG Capability
• Direct PC Connectivity
• Wide range of broadband transducers
• 2D
• Tissue Harmonic Imaging

Sonosite SonoHeart Elite System Applications:

• Vascular
• Portable
• Pediatrics
• Adult Cardiac
• Neonatal Cardiac
• Intraoperative Procedures
• Interventional Procedures

The SonoHeart Elite ultrasound machine is lightweight and portable but still has the power and imaging qualities of much larger machines. Its direct computer connectivity makes it simple for keeping track of patient records, meaning that medical establishments can rely on the SonoHeart Elite for all of their cardiovascular needs.

For more information, please call sonosite sales representative

MODEL	SonoHeart ELITE System
DOPPLER (SOFTWARE CHARACTERISTICS)	CW, PW, CFM, Power
FRAME RATE, fps (IMAGING MODES)	Up to 100
Image storage	Up to 119 internal memory
MONITOR, cm (in)	12.7 (5) LCD
OPTIONS AVAILABLE (MAXIMUM DISPLAY)	Video printer, external monitor, VCR, SiteLink image manager, mobile docking station, carry case
H x W x D, cm (in)	33.8 x 19.3 x 6.4 (13.3 x 7.6 x 2.5)
WEIGHT, kg (lb) (DISPLAY)	2.5 (5.5)
MAXIMUM DISPLAY
Depth, cm (MAXIMUM DISPLAY)	24
SCAN CONVERTER
Matrix size (SCAN CONVERTER)	640 x 480 NTSC, 768 x 576 PAL
Harmonic imaging (IMAGING MODES)	Yes
CINE LOOP PLAYBACK	Frame by frame
FDA CLEARANCE (Interference compensation)	Yes
CE MARK (MDD) (Interference compensation)	Yes
MARKETING REGION (Interference compensation)	Worldwide
PROBE, MHz AND TYPES	5-10 broadband linear array; 2-4 broadband array; 4-7 broadband array
SOFTWARE FEATURES (CATHETERS/PROBES)
Digital calipers (SOFTWARE CHARACTERISTICS)	Yes
Cardiac analysis (SOFTWARE FEATURES)	RVD, RVS, IVSD, ERH, IVSS, LVPWD, LVPWS, AO, LA, HR, FS, EF, CO, M-mode, velocity measurements, ECG
POWER REQUIREMENTS	Battery or 110-240 VAC, 50/60 Hz
SCAN MODES	2-D, CW Doppler, PW Doppler, M-mode, directional color flow power Doppler, color power Doppler, extended resolution harmonics
IMAGE PROCESSING (MAXIMUM DISPLAY)	Zoom, system optimi- zation for different exams and patient body types, gain, save, print, freeze, cine review, text/ picto, depth, narrow imaging sector, color power Doppler, directional color power Doppler, user- defined annotation
PREPROCESSING (SOFTWARE CHARACTERISTICS)	Yes
DICOM 3.0 COMPATIBLE (POWER NEEDED, VAC)	Yes
INPUT/OUTPUT	Composite video out- put (NTSC/PAL), PC direct cable, ECG/ serial connector
Grayscale levels (SCAN CONVERTER)	256
MAXIMUM DISPLAY DEPTH, cm	24
